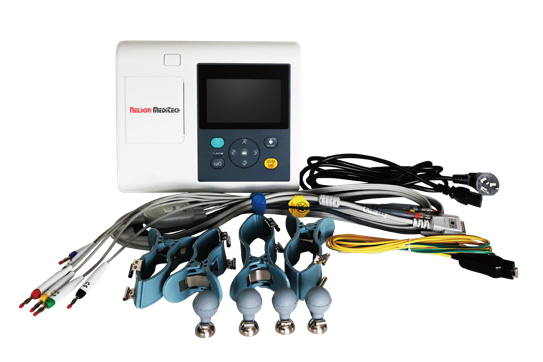

Portable ECG Machine 3 Channel NS-E3B

Feature:

·         High accuracy digital filter, automatic baseline adjustment

·         5 inch touch screen brings accurate diagnostic display and efficient operation

·         The design keyboard greatly streamlines the workflow

·         Thermal printer can accurately trace each dot of ECG waveform

Specification:

·         Lead: Standard 12 leads,3 channel

·         Lead acquisition: 12 leads synchronously acquisition

·         Work mode: Manual/Auto/R-R/Store

·         Filter: AC Filter: 50Hz/60Hz EMG Filter:25Hz/45Hz Anti-Drift Filter: 0.15Hz(adaptive)

·         CMRR: ≥120dB(with AC Filter )

·         Input Circuit: Floating; Protection circuit against debrillator e­ect

·         Input impedance: ≥50MΩ

·         Input circuit current: ≤0.05ųA

·         Patient current leakage: <10ųA

·         Calibrating voltage: 1mV±2%

·         Voltage tolerance: ≥±500mV
