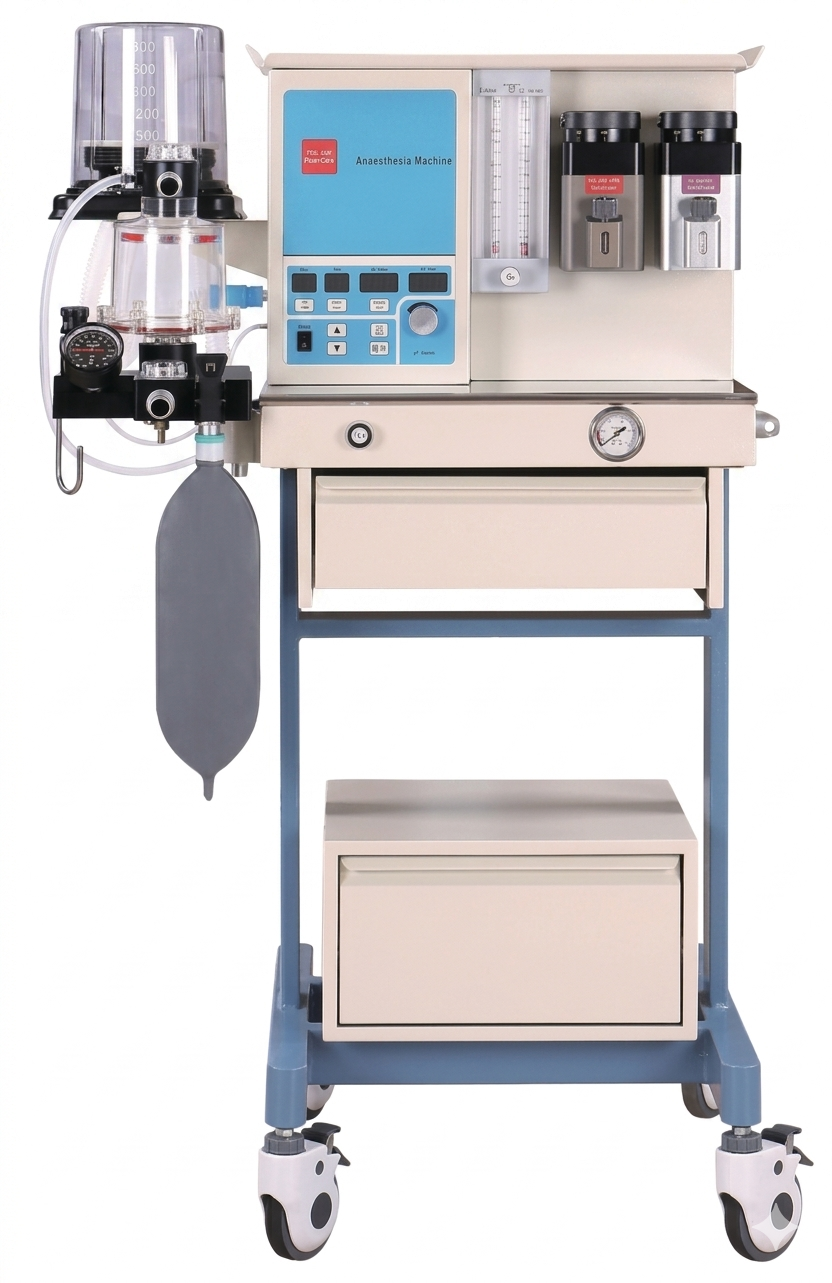

Anesthesia Machine NGSM-IIA

Technical Specification:

• High Luminance digital LED Screen
• Close, semi-close, semi-open system
• Application: Adult, Pediatric
• Low gas alarming: Low O2 gas pressure.
• High pressure limitation
• Power failure alarming, power extendable function
• O2 flush: 25-75L/min
• Gas pressure: O2: 0.3-0.5MPa
• Power: 220V, 50Hz

Flow meter

• O2 - dual tube (0.05-1L/min, 1.1-10L/min)

Anaesthesia Ventilator:

• Adult bellow 1 set
• Pneumatic driven electric control
• Working mode: Manual, Auto (IPPV)
• Tidal volume: 0, 50-1500mL
• Respiratory frequency: 4-60 bpm
• Synchroniser trigger pressure: -3-0 KPa
• High pressure limitation: 2-6 KPa
• Low pressure limitation: 0.6-2 KPa
• Monitor parameters: Tidal volume, Respirator frequency, I:E rate, Peak airway pressure
